Description

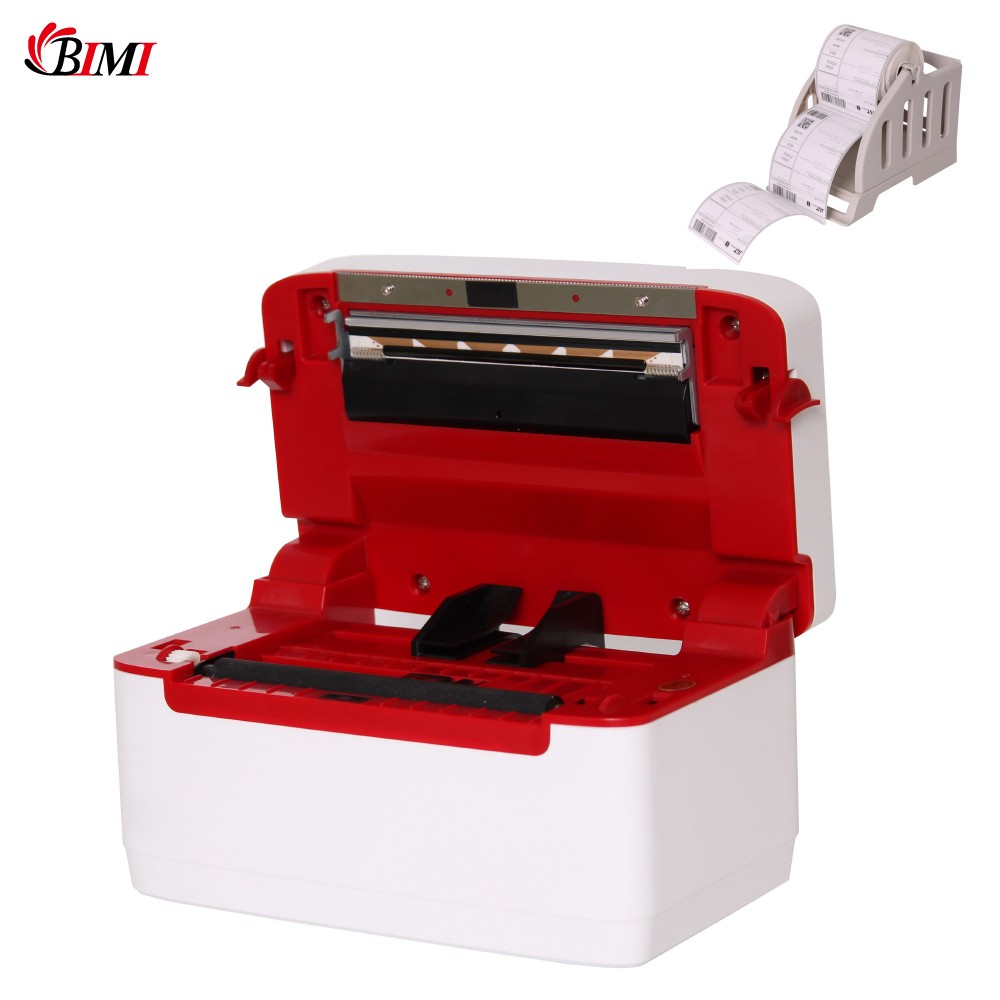

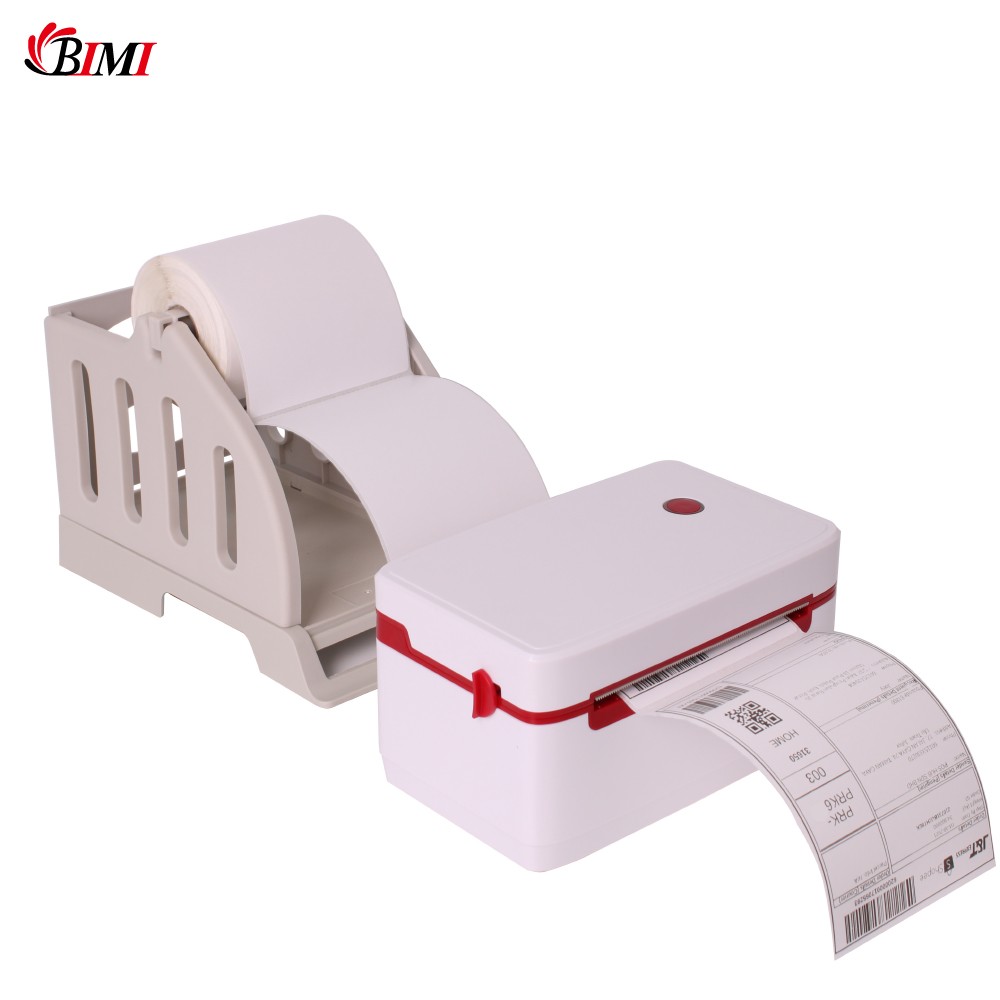

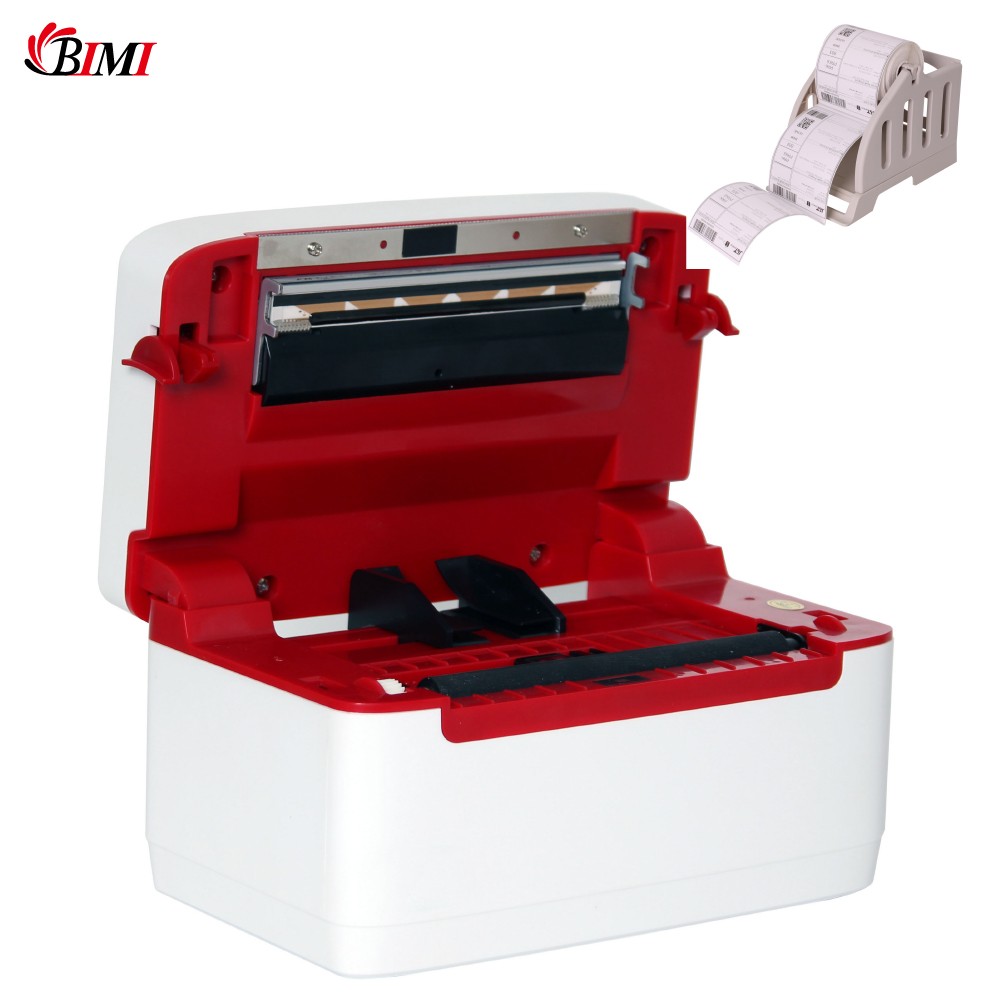

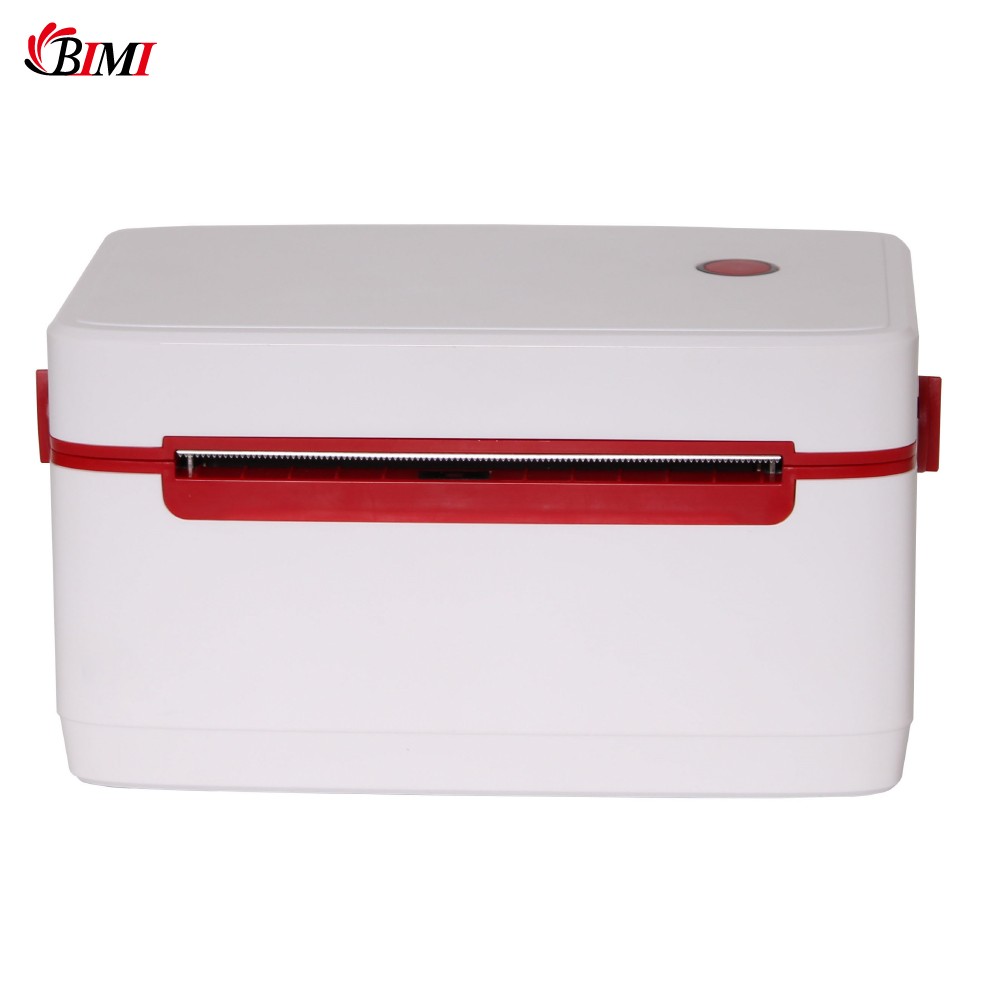

4.6inch thermal label printer pos barcode printer with external paper holder.
| Printing Features | ||
| Model | TP-80C | |

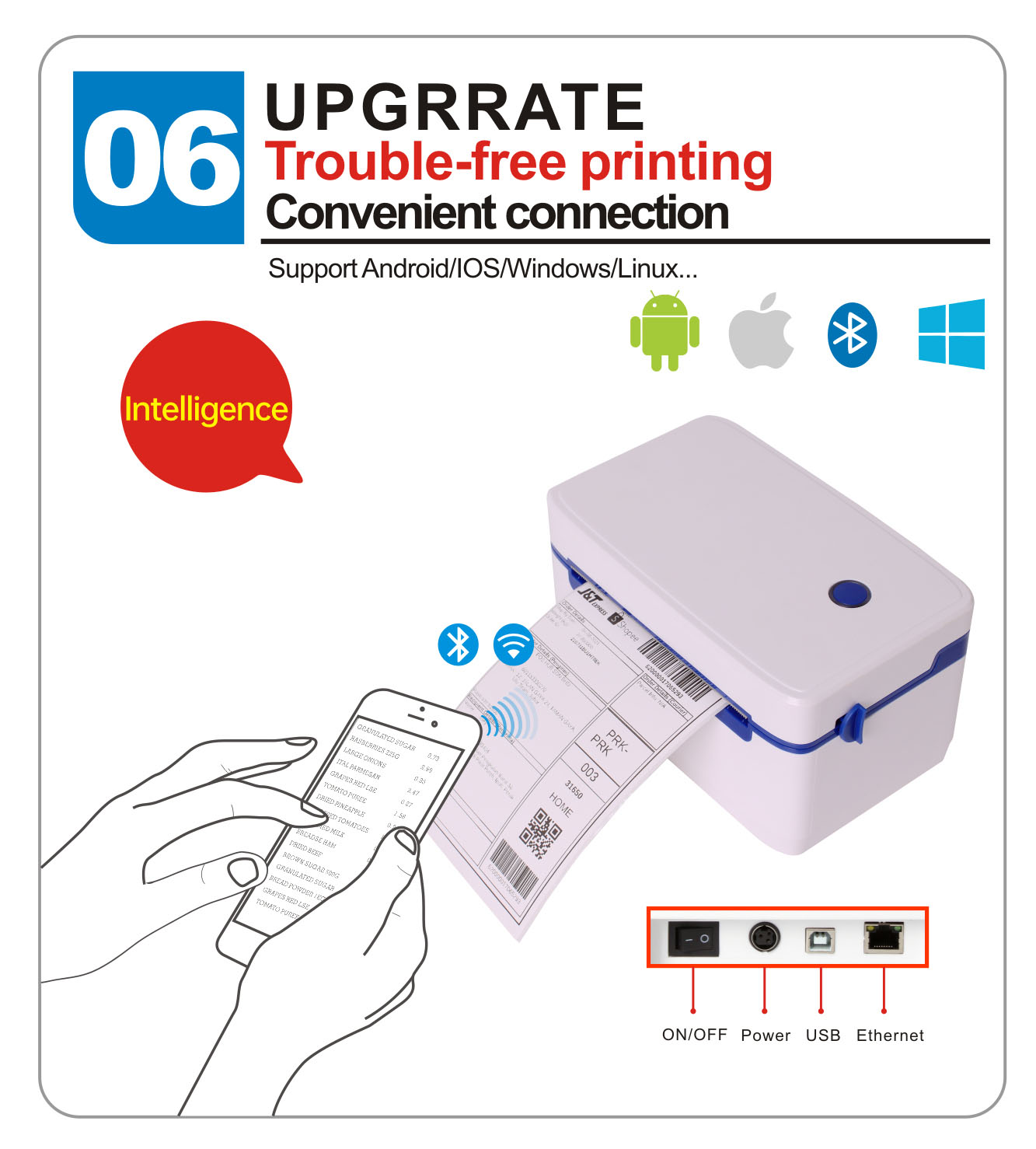

| Interface | USB+LAN | |
| Cutter | Not have, need to tear by hand | |
| Resolution | 203 DPI | |

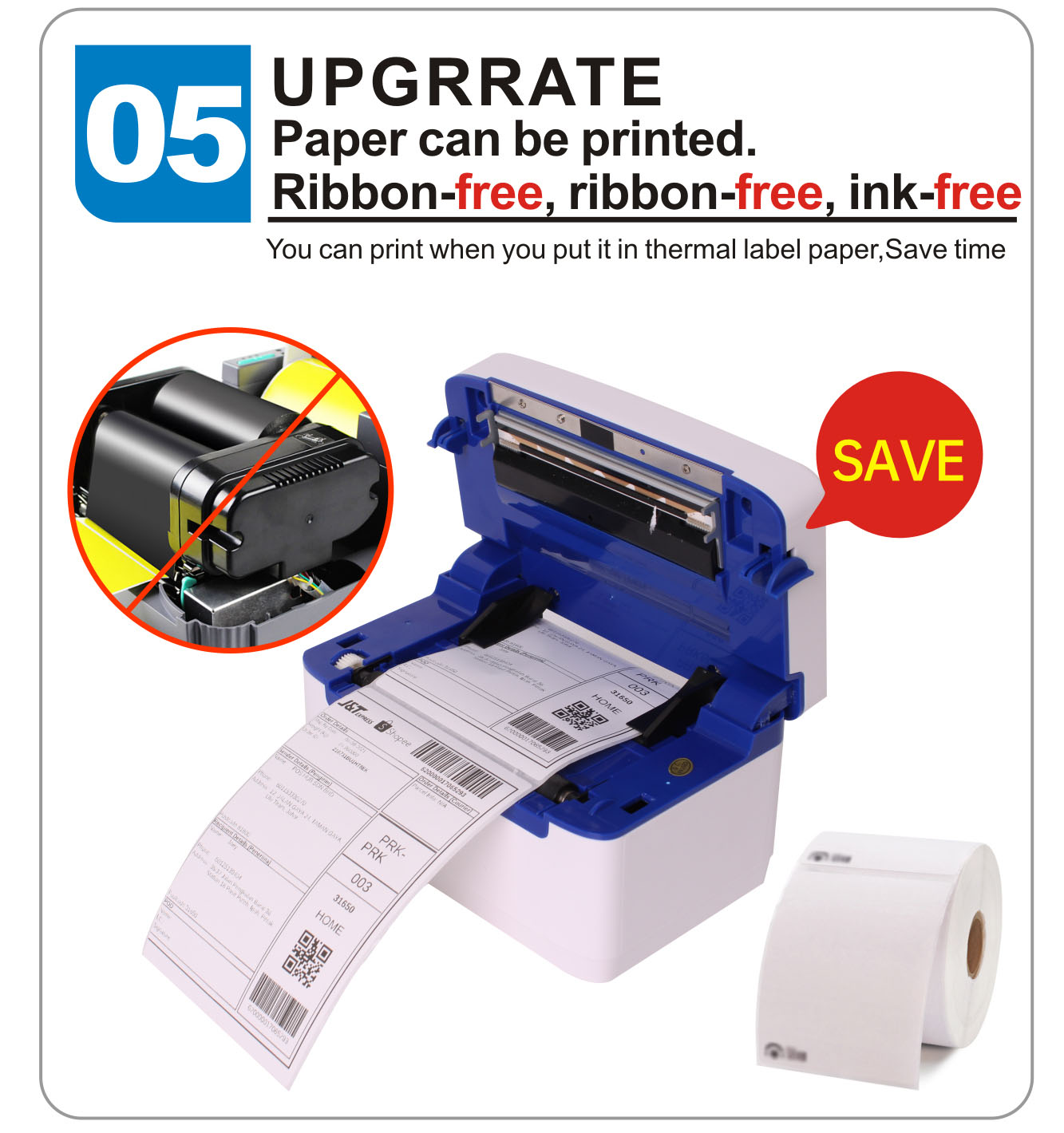

| Print method | Direct Thermal | |

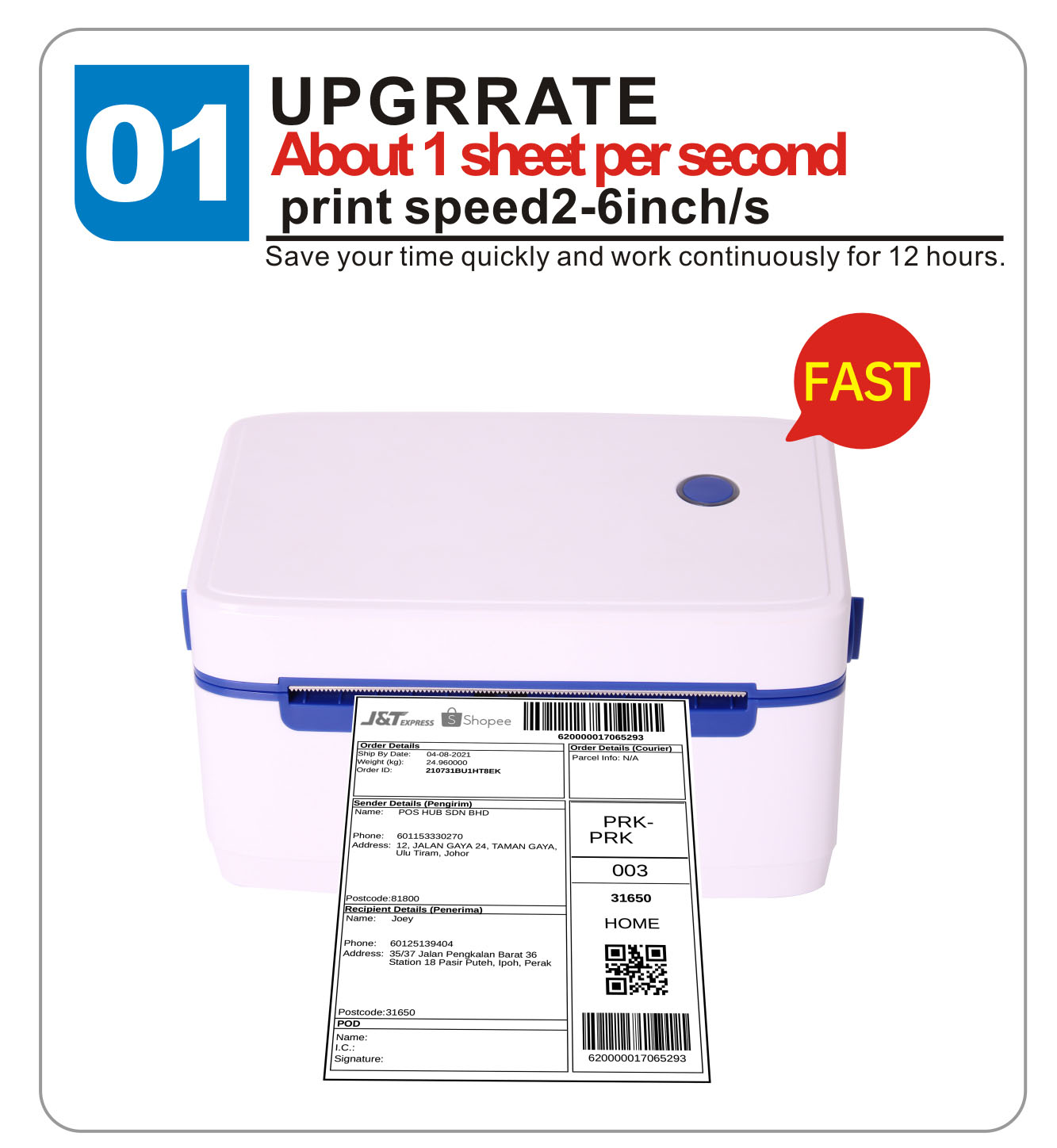

| Max.print speed | 152 mm(6'')/s Max. | |

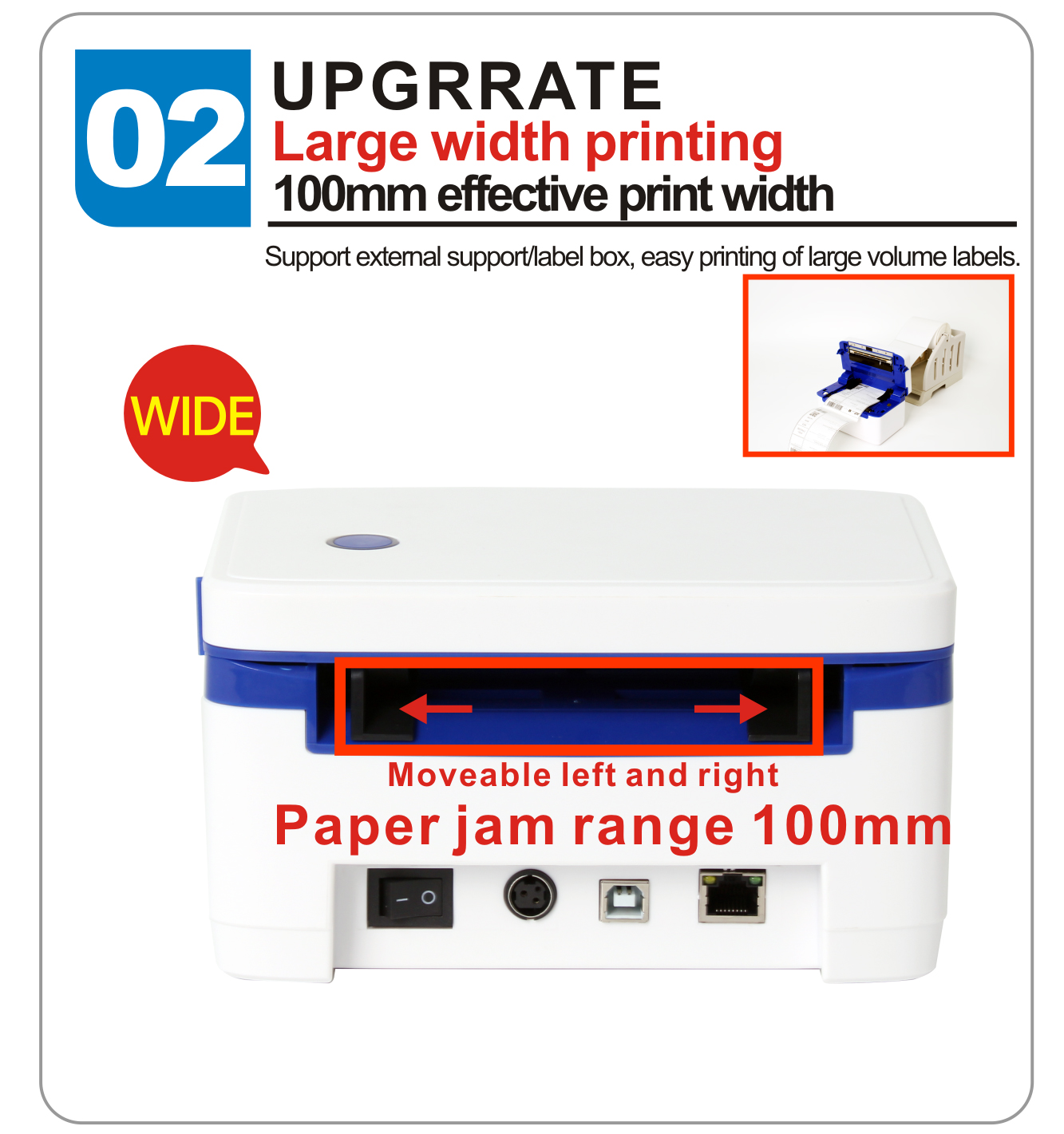

| Max.print width | 108 mm (4.25") | |
| Max.print length | 1778 mm (70") | |
| Media | ||
| Media type | Continuous, gap, black mark, fan-fold and punched hole | |
| Media width | 25.4-118mm (1.0”-4.6”) | |
| Media thickness | 0.06 ~ 0.25 mm (2.36 ~ 9.8 mil) | |
| Media core diameter | 25.4 ~ 76.2 mm (1 "~ 3 ") | |
| Label length | 10 ~ 1778 mm (0.39 " ~ 70 ") | |
| Label roll capacity | 127 mm (5“) (External diameter and External stand) | |
| Performance Features | ||
| Processor | 32-bit CPU | |
| Memory | 8MB Flash Memory/ 8MB SDRAM | |
| Interface | Standard:USB | |
| Fonts/Graphics/Symbologies | ||
| Internal fonts | 8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software. | |
| 1D barcode | Code 39, Code 93, Code 128UCC, Code 128 ，subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, | |
| MSI, PLESSEY, POSTNET, China POST | ||
| 2D barcode | PDF-417, Maxicode, DataMatrix, QR code | |
| Rotation | 0°、90°、180°、270° | |
| Emulaion | TSPL、EPL | |
| Physical Features | ||
| Dimension | 222(D) x180(W) x162(H)mm | |
| Weight | 1.15kg | |
| Reliability | ||
| Warranty | 12 months | |
| Print head life | 30 km | |
| Software | ||
| Driver | Windows/Linux/Mac | |
| SDK | Windows/Android/iOS | |
| Power adaptor | ||
| Input：AC 100-240V, 50-60Hz | ||
| Output：DC 24V, 2.5A, 60W | ||
| Environmental Conditions | ||
| Operation | 5 ~ 40°C（41~104°F），Humidity: 25 ~ 85% non-condensing | |
| environment | ||
| Storage environment | -40 ~ 60°C（-40~140°F），Humidity:10 ~ 90% non-condensing | |
