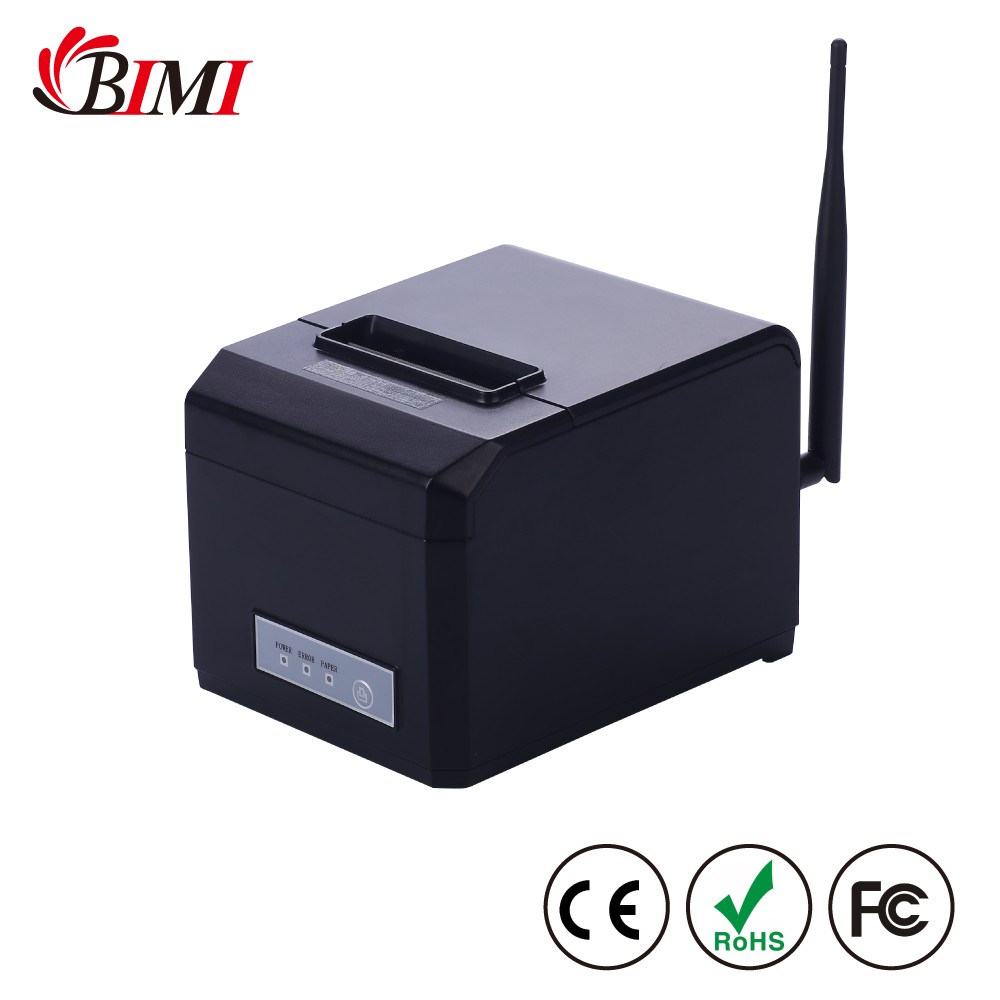

80mm thermal receipt printer

Product Item:TP-80E

Description

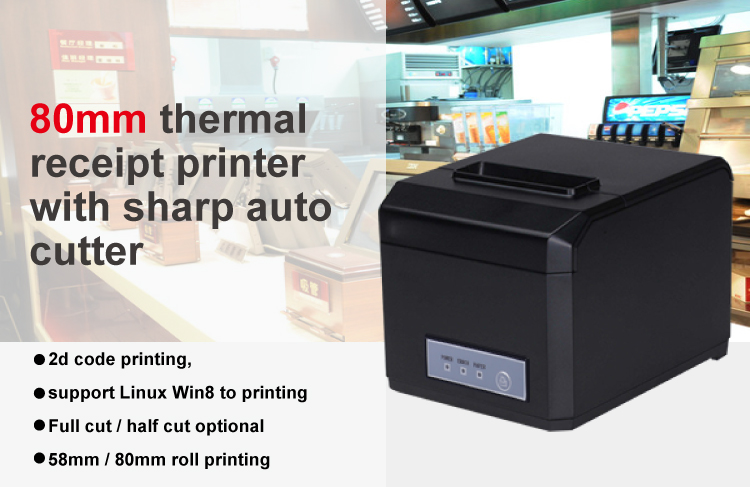

80mm thermal receipt POS printer fast speed with auto cutter WIFI

Printing Method	Thermal Line
Printing width	72mm
Resolution	576 Dots/Line or 512 Dots/Line(8dots/mm,203dpi)
Print speed	300mm/Second

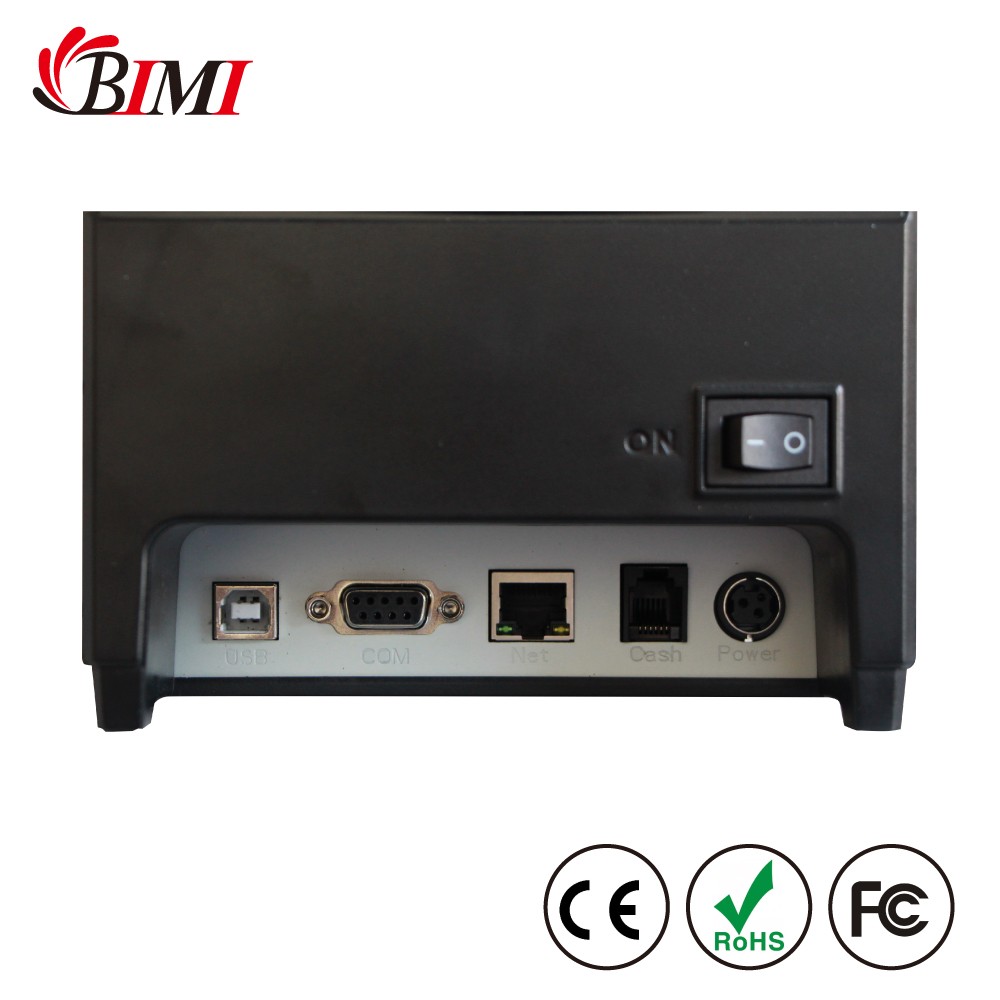

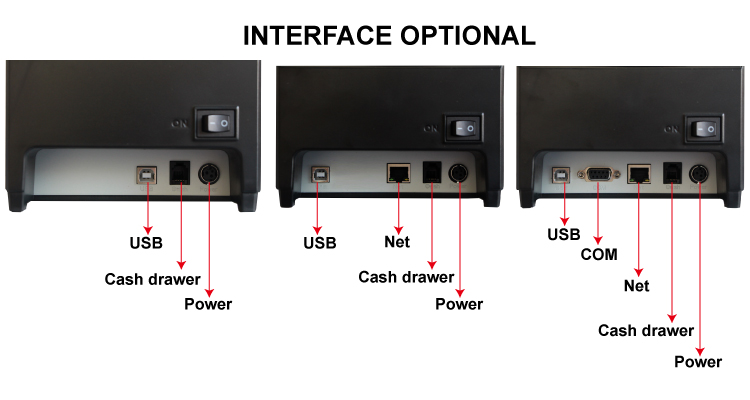

Interface	Internet(100M)USB+COM;Internet(100M)+USB+WIFI;USB+GPRS;USB+COM;USB+Bluetooth
Line Spacing	3.75mm(Can adjust line spacing by command)
Line No.	Font A-32 Lines/Font B-42 Lines/Simple traditional Chinese-16 Lines
Character	standard GB18030 simplified / traditional Chinese Fonts
Character Size	ANK character,Font A:1.5×3.0mm(12×24 dots)
Character Size	Font B:1.1×2.1mm(9×17 dots) Simplified/Traditional Chinese:3.0×3.0mm(24×24 dots)
Extended character set	PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai)

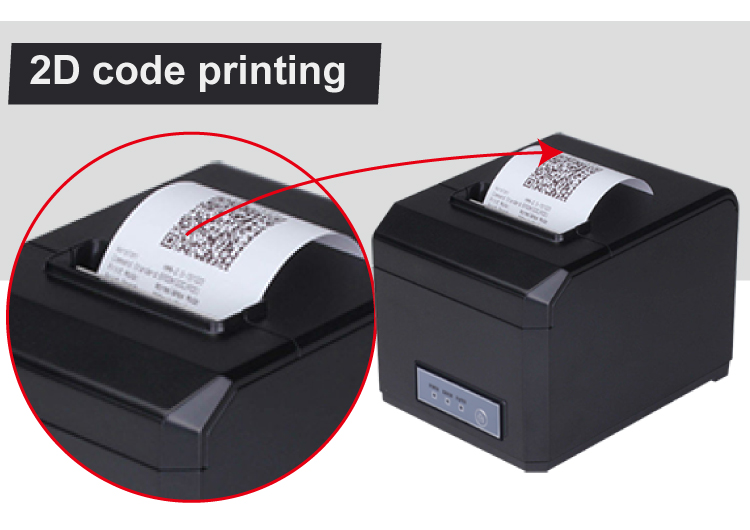

Bar code	1D bar code:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/CODABAR/CODE93/CODE128 / 2D barcode:QRCODE
	CODABAR/CODE93/CODE128
Graphics printing	Supports bitmap download and print ( each bitmap size Max.20K)

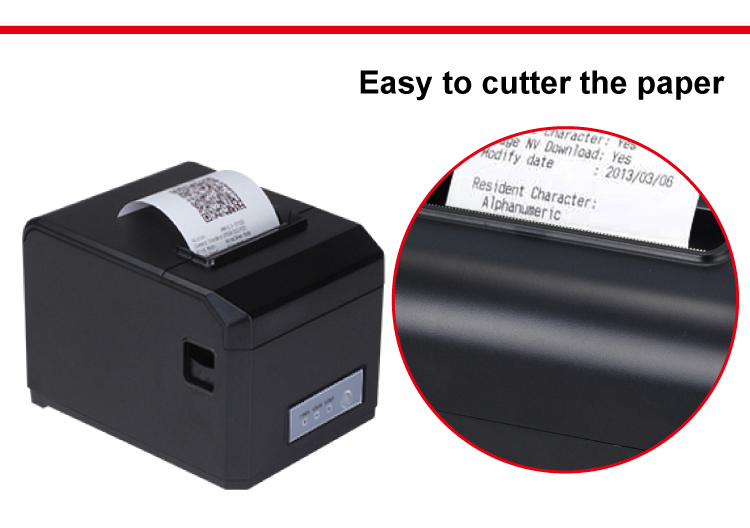

Cutter Function	Full cut/Half cut
Type	Thermal
Width	79.5±0.5mm
Diameter	≤80mm

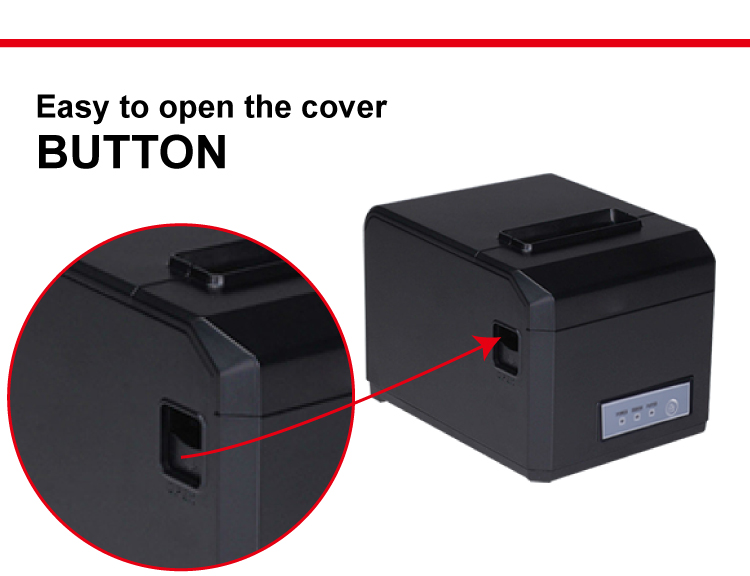

Feed method	Easy feed(Clameshell feed)
Commands	ESC/POS
Power Adaptor	Input:AC 110V/220V,50~60Hz ; Output:DC 24V/2.5A
Cash Drawer output	DC 24V/1A
Input Buffer	2048K bytes
NV Flash	256K bytes
Working	Temp:5 ~ 45℃, Humidity:10 ~ 80%
Storage	Temp:-10 ~ 50℃ ,Humidity:10 ~ 90%(No dew)
Print Head Life	100KM(print density≤12.5)
Cutter Life	1000,000times
Driver	Android,IOS,Linux,Win2000,Win2003,WinXP,Win7,Win8,Win8.1
